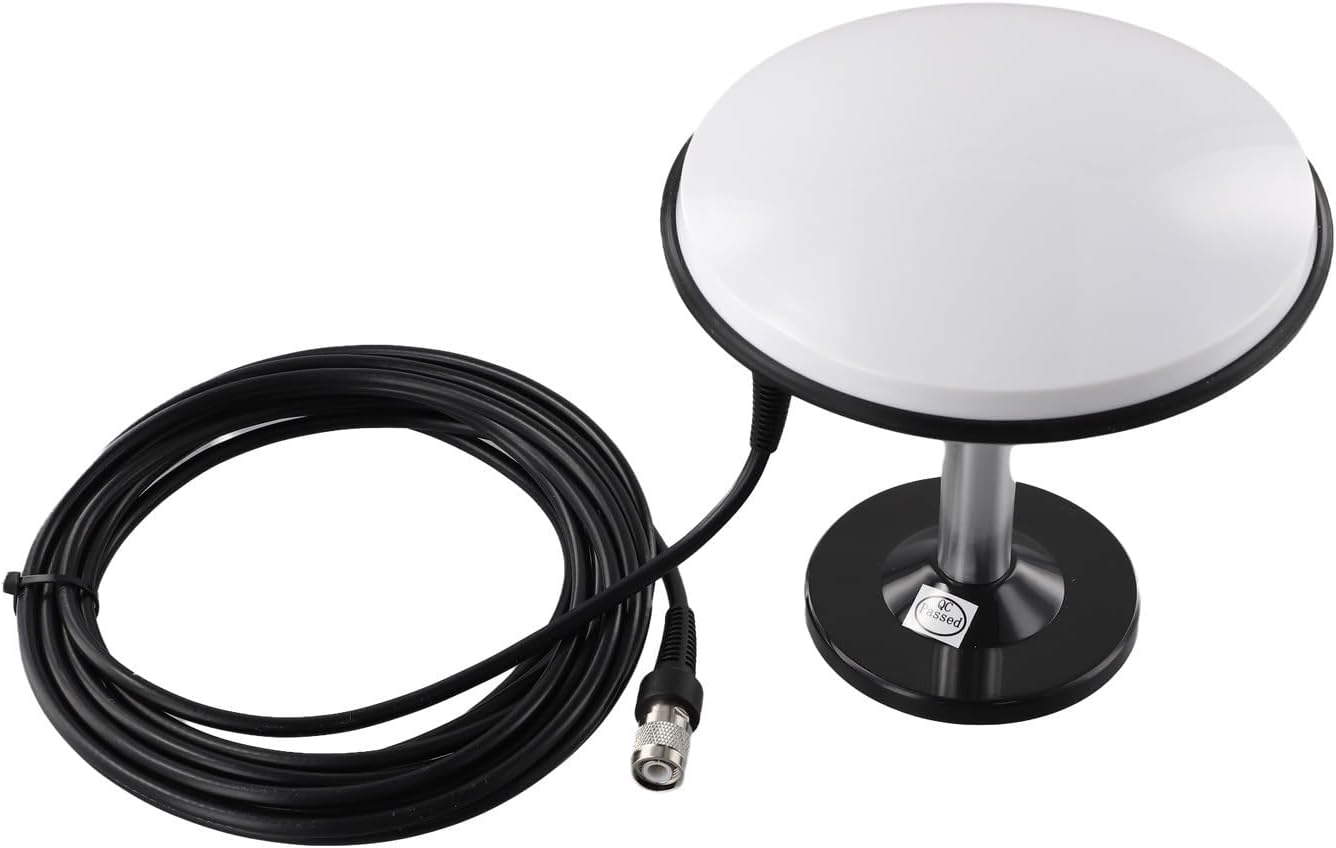

STARF-107 GNSS Antenna with M90SD Base, Compatible for Agricultural GPS Systems(Antenna+Cable-SMA)

Features:* * STARF-107 can receive signals in GPS, GLONASS, for Galileo and Beidou frequency bands. The antenna has the characteristics of high gain, good gain at low angles, wide-angle circular polarization, and stable phase center. It is suitable for four-, high- for surveying and mapping fields, and is widely used in geodetic surveying, road construction, survey, terminal container operations and other occasions.* The antenna part adopts a multi-feed point design to for ensure that the phase center and the geometric center coincide, minimizing the of the antenna on measurement errors;* The antenna unit has high gain and beam width in the pattern, which ensures the reception of signals at low angles and can still search for stars normally under some serious obstruction conditions;* High and low temperature resistance, waterproof, anti- cover to the antenna* long term working in the field.Specification:Type (optional): STARF-107+M90SD+cable for SMA, STARF-107+M90SD+cable TNCMaterial: ASA+Color: as shown in the pictureWorking frequency: GPSL1/L2 BeiDouB1/B2/B3 GLONASSG1/G2 GalileoE1/E5bPolarization type: RHCPImpedance: 50ΩHorizontal coverage angle: 360°Output standing wave ratio: ≤1.5Antenna AR: ≤3dBPhase center error: ≤3mmLow Noise Amp lifier Specificationsfor LNA gain: 40±2dBNoise figure: ≤1.5dBOutput standing wave ratio: ≤1.5Working voltage: +3V~+16VWorking current: ≤50mAConnector: TNC-K (female), supports customizationAntenna size (mm): Ф151.6mm×63mmWorking temperature (℃) -40℃: ~+70℃Storage temperature (℃) -55℃: ~+85℃Waterproof grade: IP67Size: as shown in the picturePackage Contents:1 x STARF-107 antenna1 x M90SD base1 x 5m signal cable

• 【High Gain and Wide-Angle】STARF-107 GNSS antenna receives signals in GPS, GLONASS, for Galileo, and Beidou frequency bands. With high gain and good gain at low elevation-angles, it ensures stable reception even in obstructed conditions.
• 【Accurate and Reliable】Multi-feed point design ensures the phase center and geometric center are aligned, minimizing measurement errors. Good for high-precision surveying, road construction, and ocean-survey.
• 【Robust and Waterproof】Designed to withstand high and low temperatures, the antenna is waterproof and features anti-UV cover for long-term field use. It can endure various working environments.
• 【Easy Installation and Customization】Comes with a magnetic base and signal cable for convenient installation. Supports customization of TNC-K connectors for added flexibility.
