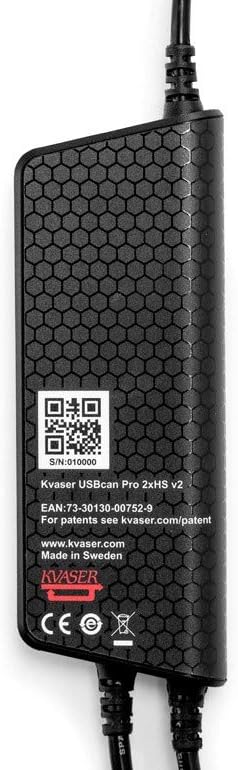

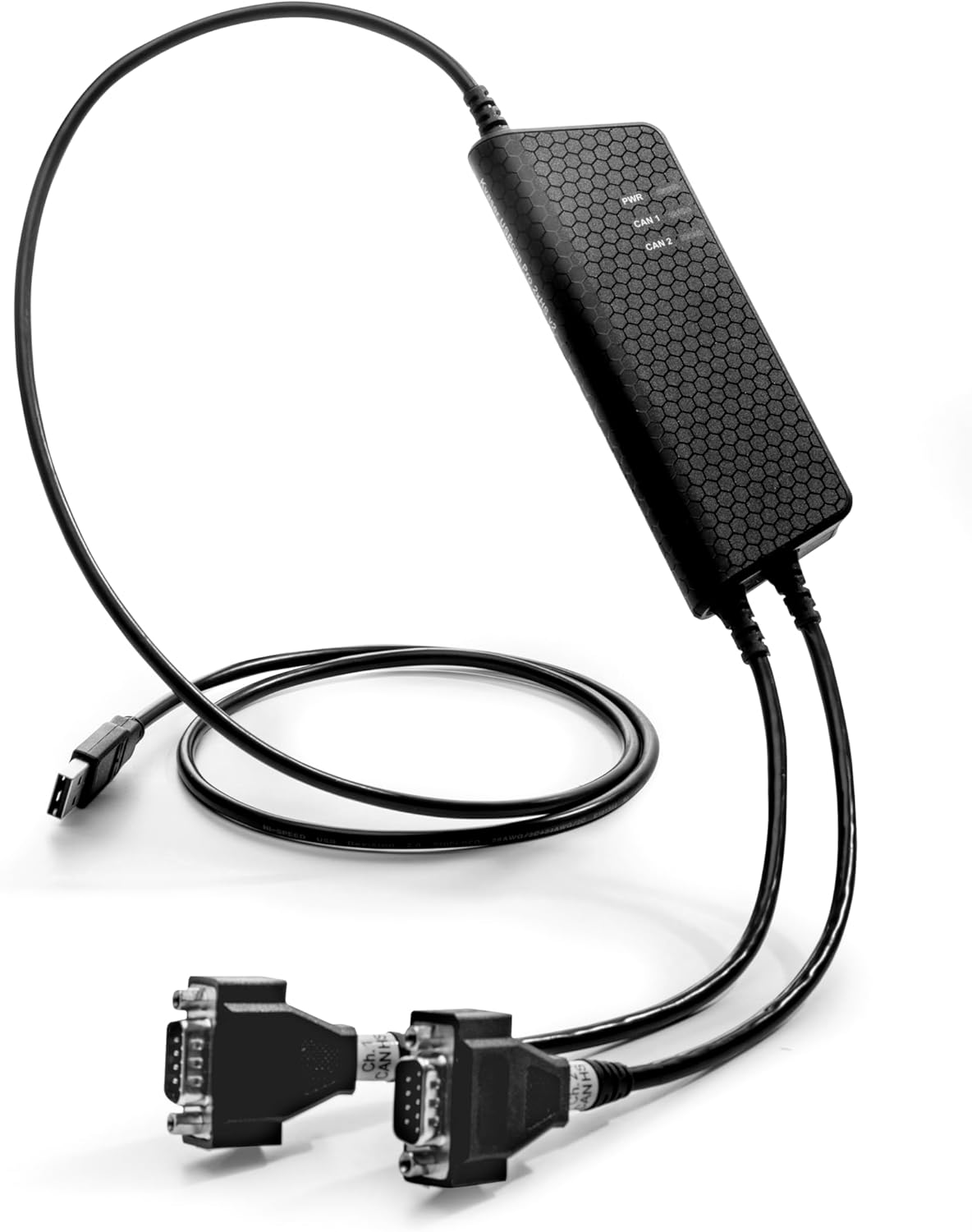

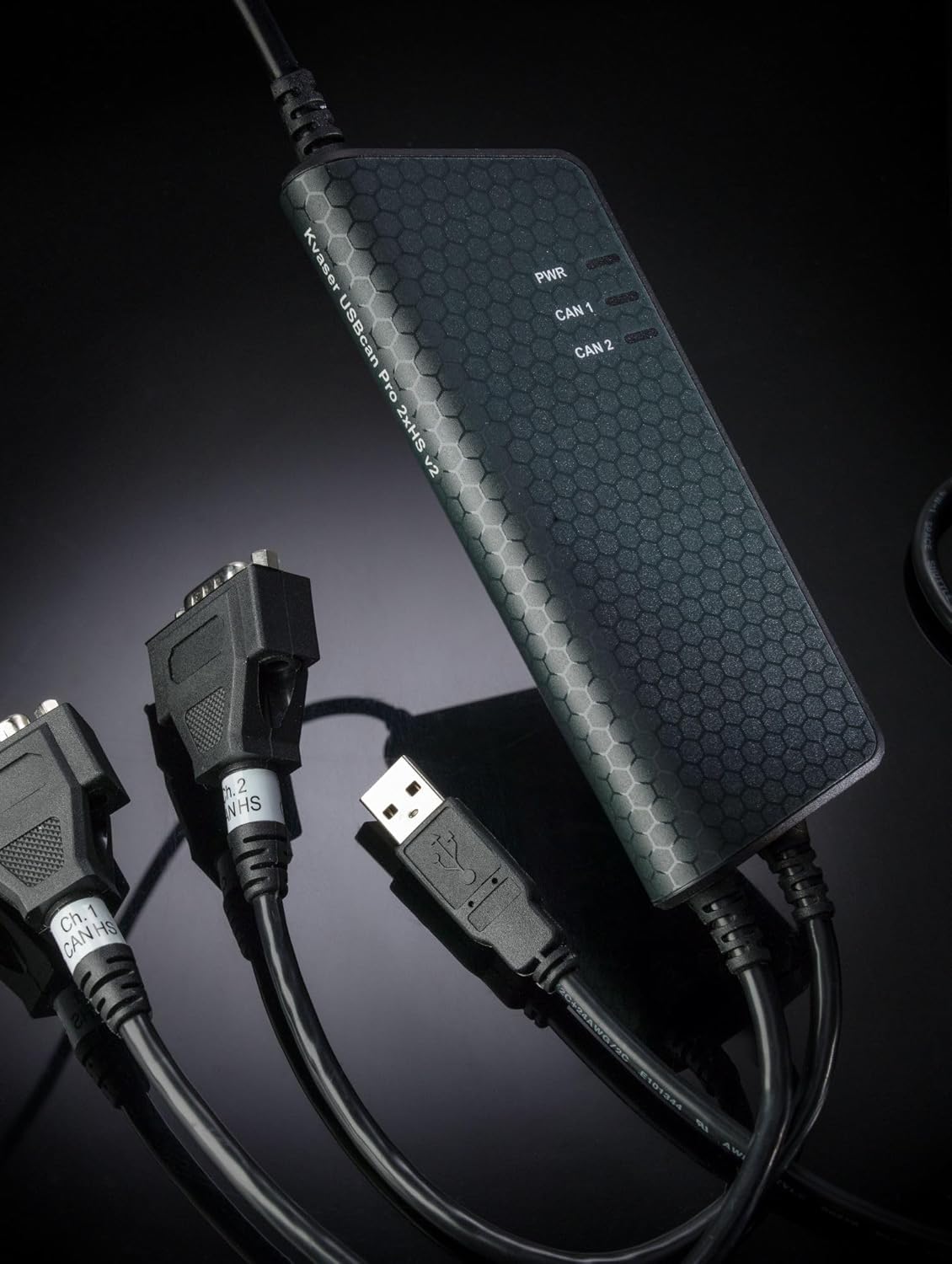

Kvaser USBcan Pro 2xHS v2 Dual USB to CAN Bus Interface

The USBcan Pro 2xHS v2 is a USB to dual-channel CAN or CAN FD interface with scripting capability. With a standard USB connector and two high-speed CAN channels with ISO 11898-2 compliant CAN transceivers in two separate 9-pin D-SUB CAN connectors, it is high-performance, yet compact, and can be used as a simple dual-channel interface to connect two high speed CAN buses to a PC or mobile computer, or can be programmed to do more. The Pro version is shipped with Kvaser TRX, a lightweight development environment that lowers the bar when starting out programming the device. Major Features USB CAN interface with Kvaser t programmability. Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation). High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s. Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers. Power is taken from the USB bus. Galvanic isolation. Quick and easy plug-and-play installation. Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet. Kvaser MagiSync provides automatic time synchronization between several PC-to- bus interfaces connected to the same PC. Programming functionality to support interface mode e.g. optimize protocol handling, pre-filter CAN messages directly on the interface or simulate missing hardware. Simultaneous operation of multiple devices. Software Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, Java, Python and Visual Basic. All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types! J2534 Application Programming Interface is available. RP1210A Application Programming Interface is available. Documentation in Windows HTML-Help and Adobe Acrobat format. Tech Specs Bitrate: 50 - 8000kbps CAN FD Bitrate: Up to 8 Mbit/s Categories: Interfaces, Hardware Certificates: CE, RoHS Channels: 2 Connectors: DSUB 9 Error Counters Reading: No Error Frame Generation: No Galvanic Isolation: No Height: 20 mm Interfaces: USB Length: 170 mm Messages Per Second Receive: 20000 mps Messages Per Second Sending: 20000 mps OS: Linux, Win 7, Win 10, Win 8 Silent mode: Yes Sound: No Temp range: -40 °C to 85 °C Timestamp Resolution (µs): 1 µs Weight: 170 g

• USB CAN interface with Kvaser t programmability.
• Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
• Supports both 11-bit (CAN2.0A) and 29- bit (CAN 2.0B active) identifiers.
• Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
