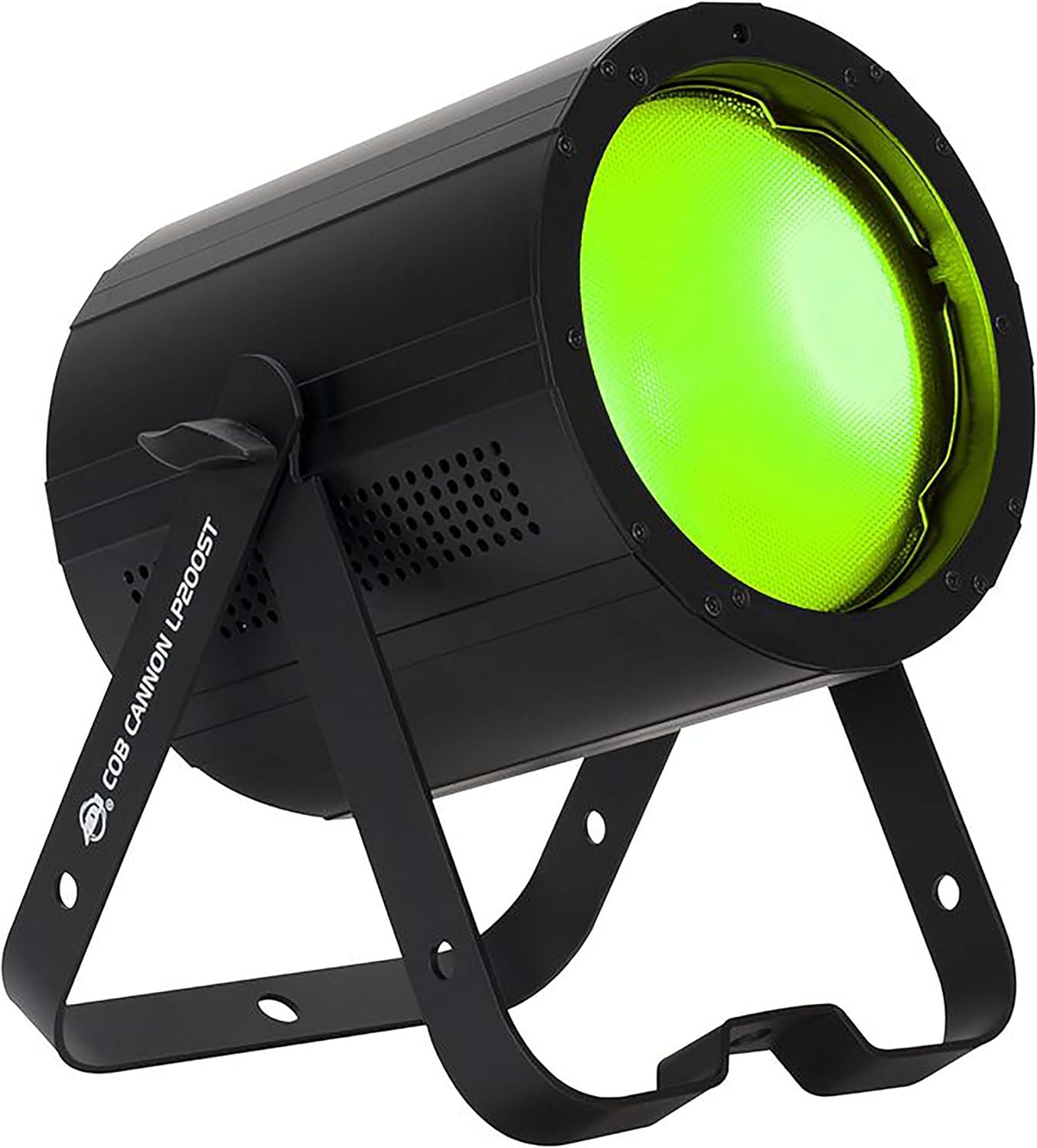

COB Cannon LP200

The ADJ COB Cannon LP200 is a powerful and flexible professional wash lighting fixture that can be used for a wide variety of applications. It harnesses the power of an efficient 200-Watt COB (Chip On Board) RGBAL (red, green, blue, amber and lime) LED light source, which generates a potent and even output with no color shadows. This efficient light engine combines red, green, blue, amber and lime LED chips to allow the creation of a huge gamut of colors as well as white light with a tunable white color temperature between 2300K and 9900K. The inclusion of the lime LED chip helps certain colors to appear more vivid and also boosts the CRI to in excess of 90. Offering a wide native beam angle of 80-degrees, allowing a large area to be washed with vibrant colored light, the fixture is also supplied with a useful lens kit. This comprises both 40-degree and 50-degree lens options, which easily and securely clip to the front of the fixture to provide a narrower beam angle when required. For easy integration into an existing control system, 5-pin DMX input and output sockets are included on the unit’s rear panel. There are also locking power input and output sockets, which can be used to connect up to three fixtures to a single power outlet. It is also supplied with a flexible scissor yoke, which can either be used as a hanging bracket or floor stand, and barn doors for directing the light output are available as an optional accessory. An Omega Bracket is included so that this fixture can be hung vertically as a pendant light.

• OPTICAL: Light Source: 1x 200-Watt COB (Chip on Board), RGBAL (Red, Green, Blue, Amber & Lime), LED Engine LED Engine Life Rating: Approximately 50,000 hrs. CRI: >90 Tunable White Color Temperature: 2300~9900K 80-degree beam angle Includes lens kit to change to 40-degrees or 50-degrees beam angle
• FEATURES: Primary / Secondary Mode Flicker Free operation (No flickering on camera) Produces powerful, smooth RGBAL color mixing with rich palettes of color Scissor yoke allows fixture to be mounted on truss or set on the ground Optional Barn Doors (BAR001) sold separately
• CONTROL:10 DMX Channel modes (5CH, 8CH-A, 8CH-B, 9CH, 10CH-A, 10CH-B, 12CH, 13CH, 16CH, 20CH)Linear color temperature control via DMX Built-in color temperature presets accessible via DMX64 built-in color macros4-button OLED digital DMX display on rear panel Compatible with the ADJ UC IR remote control (included)LED pulse and strobe effectElectronic Dimming: 0 - 100%6 selectable Dim Modes (Standard, Stage, TV, Architectural & Theatre)4 selectable Dim Curves (Square, Linear, Inv. Squa & S.Curve)Adjustable selectable Refresh Rate (14 presets from 900 – 25,000Hz)
• CONNECTIONS: 5-pin XLR connectors for DMX data linking Indoor locking power In & Out connections to daisy chain power USB Service PortELECTRICAL: Auto sensing power supply: AC 100V/60Hz - 240V/50Hz Power Draw: 175W max Daisy chain up to 5 fixtures (120V) or 10 fixtures (230V) maximum
• DIMENSIONS / WEIGHT: Dimensions (LxWxH): 16.25”x9.75”x7.5” / 415x245x192mm) Weight: 9.45 lbs. / 4.30 kg.WHAT’S INCLUDED: (1) 50-degree lens (1) 40-degree lens UC IR Wireless Remote Power Cord Scissor Yoke Omega Bracket
